System | LP Mod-Plus Marathon™ |
---|---|
Operating Temperature Range | 38°C to 218°C (100°F to 425°F) |
Minimum Operating Pneumatic Pressure | 5 bar (74 psi) |
Maximum Operating Pneumatic Pressure | 9.7 bar (140 psi) |
Minimum Adhesive Pressure | 41 bar (600 psi) |
Maximum Adhesive Pressure | 68 bar (1,000 psi) |
Minimum Adhesive Viscosity | None |
Maximum Adhesive Viscosity | 20,000 cps |
Maximum On/Off Cycle Speed | 5,000 cycles/minute (400 series MAC® valve) |
Dimensions | LP Mod-Plus Marathon™ |
---|---|
Height (H) | 270.4 mm (10.65 in) |
Depth (D) | 154.5 mm (6.08 in) |
Width (W) | 60.3 mm (2.37 in) (2 modules) 88.8 mm (3.50 in) (4 modules) |

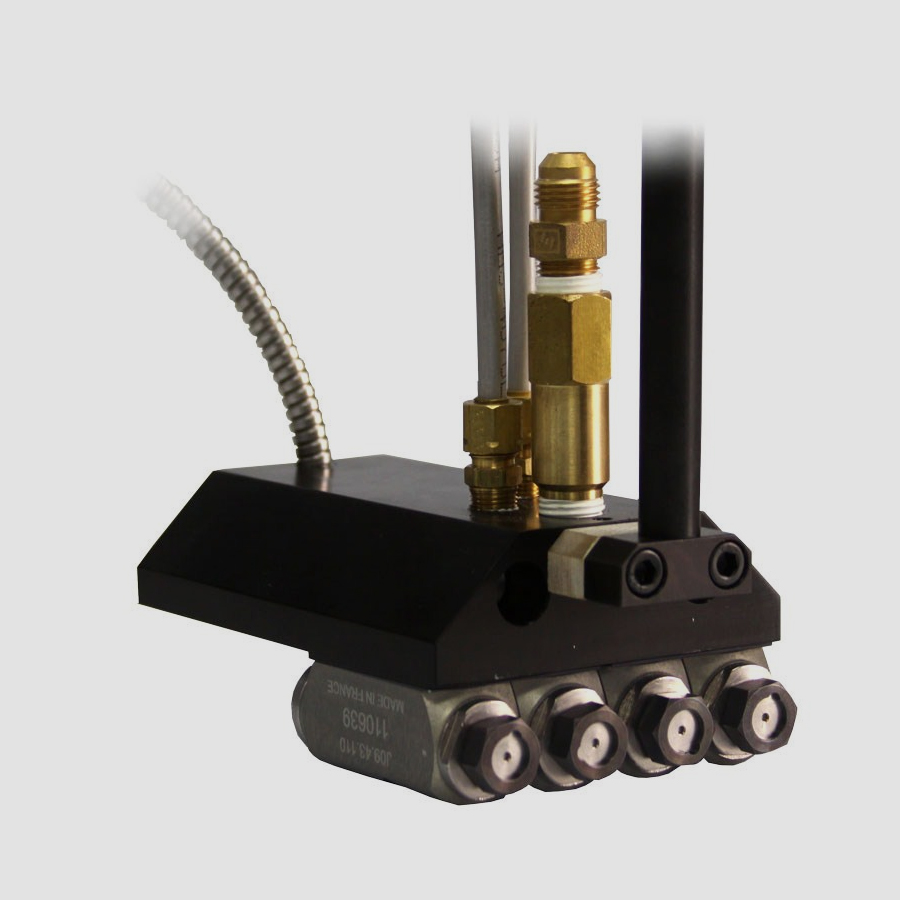

The LP MOD-PLUS MARATHON™ is an air-operated hot melt adhesive applicator with an in-line cartridge filter to prevent particulate matter from clogging the nozzle. The slim body allows for uninterrupted flow of cartridges, making it ideal for case erecting and case sealing applications. The LP Marathon™'s screw-on nozzle seat also allows for quick and easy nozzle changes.
• Standard in-line filter prevents nozzle clogs.
• Platinum sensor provides optimal temperature control.
• Standard air-open/air-close module for precise bead placement.
• Low profile design ideal for case erecting and case sealing applications.
• Swivel angled nozzle can be positioned for optimal pattern placement.
• Air-open/air-close design
• Over time, hot melt glue modules that utilize a spring-loaded open/close system can lose spring tension, leading to stretching and cutting failures. The LP Mod-Plus Marathon™ hot melt glue module is designed to operate as an air-open/air-close system that does not rely on a spring to close the air vent during operation. The result is both cleaner cuts and better performance throughout a longer operating life. While this feature may be optional on competitive modules, only ITW Dynatec offers this feature standard on the LP Mod-Plus Marathon™ hot melt glue applicator.
