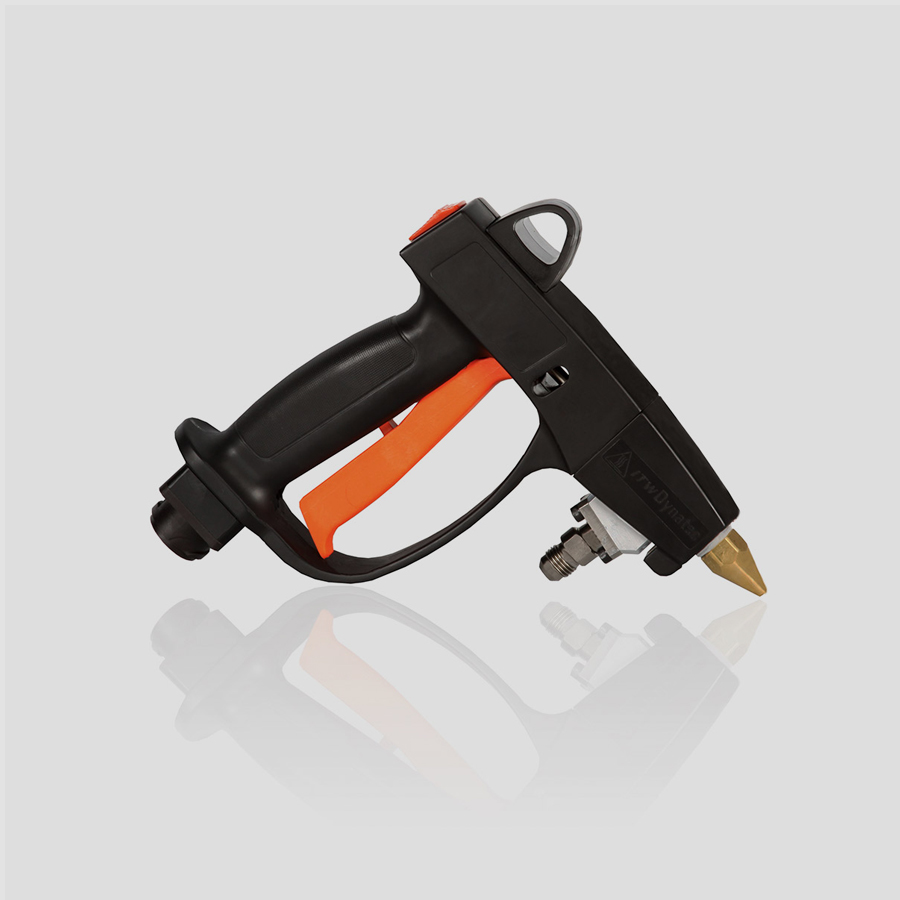

| System | DGII Hand-Held Applicator |
|---|---|
| CE Mark | Yes |
| Temperature Range | 38° C - 232° C (100° F - 450° F) |
| Maximum Operator Pressure | 7 MPa (1,000 psi) |
| Working Viscosity | 0 - 80,000 cps |
| Flow Rate | .39 kg/min (.9 lb/min) |
| Voltage/Power Requirements | 120 or 240 VAC 50/60 Hz |
| Solenoid Pressure Range (for swirl application only) | .48 - .96 MPa (70 - 140 psi) |
| Spray Air Pressure Range (for swirl application only) | 0 to .55 MPa (0 to 80 psi) |
| Dimensions | DGII |
|---|---|
| Height (H) | 22.2 cm (8.74 in) |
| Depth (D) | 22.5 cm (8.46 in) |
| Width (W) | 4.2 cm (1.65 in) |
| Weight (empty) | .77 kg (1.7 lbs) |
DGII is designed to flexibly connect to adhesive supply hoses via ball swivel or rotary swivel connections.
• Swivel or ball swivel with top or bottom hose connection.
• Ergonomic handle with clear view to nozzle tip.
• Easy cartridge-style heater and sensor replacement.
• Two or four finger trigger with integrated trigger lock.
• Straight or angled nozzle adapter.
• Bead or spiral application.
• Swivel or ball swivel with top or bottom hose connection.
• Ergonomic handle with clear view to nozzle tip.
• Easy cartridge-style heater and sensor replacement.
• Two or four finger trigger with integrated trigger lock.
• Straight or angled nozzle adapter.
• Bead or spiral application.
| System | DGII Hand-Held Applicator |
|---|---|
| CE Mark | Yes |
| Temperature Range | 38° C - 232° C (100° F - 450° F) |
| Maximum Operator Pressure | 7 MPa (1,000 psi) |
| Working Viscosity | 0 - 80,000 cps |
| Flow Rate | .39 kg/min (.9 lb/min) |
| Voltage/Power Requirements | 120 or 240 VAC 50/60 Hz |
| Solenoid Pressure Range (for swirl application only) | .48 - .96 MPa (70 - 140 psi) |
| Spray Air Pressure Range (for swirl application only) | 0 to .55 MPa (0 to 80 psi) |
| Dimensions | DGII |
|---|---|
| Height (H) | 22.2 cm (8.74 in) |
| Depth (D) | 22.5 cm (8.46 in) |
| Width (W) | 4.2 cm (1.65 in) |
| Weight (empty) | .77 kg (1.7 lbs) |
